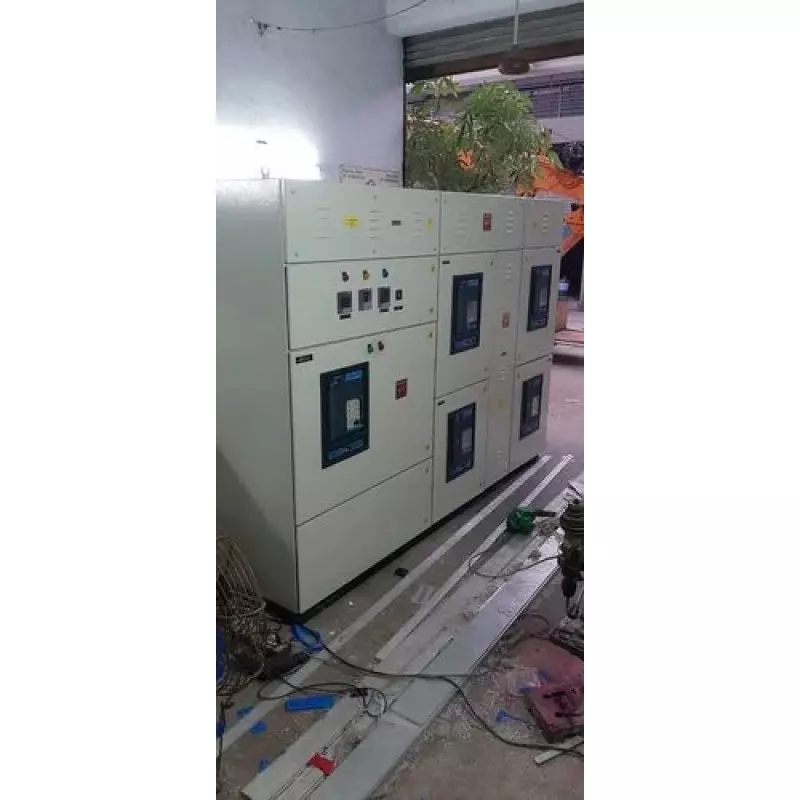

Draw Out Type Panels Supplier In Kolkata
Details of Draw Out Type Panels
Ensuring Safety, Reliability for Every Industrial Operation, Optimized for Seamless Performance In City in West Bengal
Leveraging our expertise, we are a supplier of a large assortment of Draw Out Type Panels in Kolkata. Manufactured for reliability, safety, and ease of maintenance, these panels allow modular control of electrical circuits. Their design ensures that breakers and switches can be easily drawn out or reinserted without disrupting the main supply, making them ideal for industrial and commercial power distribution systems.
Features
- Modular Design – Allows easy insertion and removal of circuit breakers.
- Enhanced Safety – Provides isolation of components during maintenance.
- Robust Construction – Sturdy enclosure ensures long-lasting performance.
- User-Friendly Operation – Simplifies inspection, testing, and maintenance.
- High Fault Withstand Capacity – Designed for industrial-grade electrical loads.
Applications
- Commercial Complexes – Protects and controls power in office buildings and malls.
- Substations – Ensures safe and flexible operation of incoming and outgoing feeders.
- Renewable Energy Systems – Suitable for solar and wind power distribution control panels.
- Infrastructure Projects – Applied in airports, metros, and large public utilities.
Specification
| Parameter | Details |
|---|---|
| Rated Voltage | 415 V – 11 kV |
| Current Rating | 100 A – 6300 A |
| Number of Poles | 3 Pole / 4 Pole |
| Short Circuit Rating | 25 kA – 85 kA |
| Mounting Type | Floor Mounted / Wall Mounted |
| Insulation Level | Up to 12 kV |
| Protection Features | Overload, Short Circuit, Earth Fault |
Offering efficient, safe, and reliable electrical control for industrial, commercial, and infrastructure applications.
Offered Product
Draw Out Type Panels
A Drawout Panel Is a Crucial Part Of Any Electrical Distribution System As It Reduces Production Downtime In Industries. These Low-voltage Panels Help Improve The Efficiency Of The Electrical Systems And Also Reduce The Faults That Are Accessible For Maintenance And Servicing.Technical Specification:Voltage Rating415 VAutomation GradeAutomaticPhaseThree PhaseRated CurrentUpto 6300 AmpsBus BarCopperMaterialCRCAFrequency50 HzSh... Read moreDraw Out Type Panel Manufacturers In Banaskantha
We Have Carved A Strong Foothold In The International Industry Map As A Prestigious Manufacturer, Exporter, And Supplier Of An Outstanding Quality Wide Spectrum Of Panels. The Offered Panels Are Used In Commercial And Industrial Applications. Manufactured Using High-grade Stainless Steel, The Offered Panels Are Known For Their High Strength And Rust-resistive Surface. Moreover, We Offer These Panels To Our Valued Patrons At Cost-effective Rates.Voltage Rating415 VAutomation Grade Continue
Draw Out Type Panel Manufacturers In Surat
With Our Immense Experience In This Domain, We Have Become A Noteworthy Manufacturer, Exporter And Supplier Of Premium Quality Draw Out Type Panels. The Offered Draw Out Type Panels Are Manufactured Using Premium Quality Ingredients And Advanced Technology. To Ensure Flawlessness, The Offered Draw Out Type Panels Are Tested On Various Parameters By Our Quality Controllers Before Sending The Delivery From Our Side. Offered Draw Out Type Panels Require Low Maintenance And Are Available At Cos Continue
Draw Out Type Panel Manufacturers In Rajkot
Our Company Is Engaged In Providing The Best Quality Draw Out Type Panels To Countless Valued Customers In The Market. Our Company Is Engaged In Providing The Best Quality Draw Out Type Panels To Countless Valued Customers In The Market. This Type Of Control Panel Is Suitable For Reduces Production Downtime In Industries. The Draw Out Type Panel Features Multi-colored Buttons Or Push Switches, A Speedometer And Other Electrical Components. It Is Easy To Install, Energy Saving, And Stable Perform Continue
